Rubber Calendering Gauge Tips for Precision Sheeting

Rubber calendering is a manufacturing process where rubber compound is passed between two or more precisely heated, counter-rotating rolls to produce flat sheets of controlled thickness and surface finish. The nip gap between the rolls determines sheet gauge. Consistent control of roll temperature, speed, and nip pressure is critical—small deviations can cause gauge variation, surface defects, or material waste across the full sheet width.

Calendered rubber is a flat rubber sheet produced by the calendering process, where compounded rubber is formed into uniform layers of precise thickness. It is widely used in automotive seals, conveyor belts, flooring, roofing membranes, and industrial gaskets. The quality of calendered rubber depends heavily on maintaining consistent gauge and surface uniformity throughout the production run.

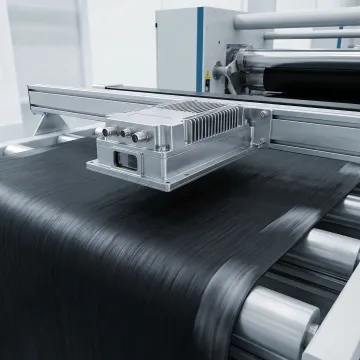

Contactless gauge systems like Hammer-IMS's M-Ray technology measure rubber sheet thickness in real time without touching the material, eliminating sensor wear and surface marking. Because measurements occur at multiple points across the sheet width simultaneously, the system detects cross-machine profile deviations instantly and can trigger closed-loop nip adjustments—keeping thickness within tolerance at high production speeds.

Non-nuclear measurement eliminates radiation licensing requirements, personnel exposure limits, and disposal regulations associated with traditional nuclear gauges. M-Ray millimeter-wave technology from Hammer-IMS delivers equivalent or superior accuracy to nuclear alternatives while allowing unrestricted 24/7 operation by production staff, reducing compliance overhead and improving workplace safety on the calendering line.

The Hammer-IMS Marveloc platform can measure materials ranging from thin films up to 30 centimeters thick, making it suitable for the full spectrum of rubber calendering applications—from thin sheeting at sub-millimeter tolerances to thick industrial rubber slabs. System configuration is tailored to your compound type and target gauge range during the initial line assessment.

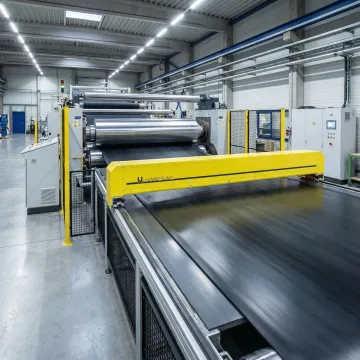

Yes. Hammer-IMS offers both new turn-key installations and upgrades to existing calendering production lines. The Marveloc CURTAIN system is designed for flexible inline integration, with fixed or mobile sensor heads configurable to your line's width and layout. Installation support is provided directly by Hammer-IMS engineers to minimize production downtime during commissioning.

The Hammer-IMS system measures at up to 3 kHz, supporting calendering line speeds of up to 500 meters per minute. This makes it suitable for high-throughput rubber sheeting operations where slower measurement systems would introduce lag between detection and correction. Real-time data is available instantly for closed-loop feedback to the calendering roll controls.

The easiest first step is to book a 30-minute demo session with the Hammer-IMS team. International customers and North American customers are handled by dedicated regional teams. During the demo, engineers review your calendering application, discuss measurement requirements, and demonstrate how M-Ray technology applies to your specific rubber compound and production environment before any commitment is required.
