Insulation Board Density Measurement and Profiling

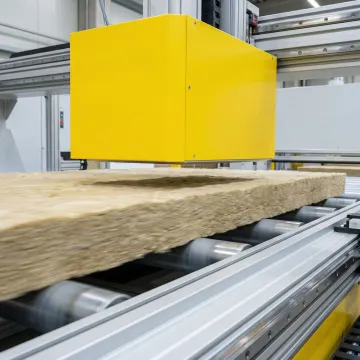

Density in insulation refers to the mass per unit volume of the insulation material, typically measured in kg/m³ or lb/ft³. It's a critical parameter that directly affects thermal performance, structural integrity, and material costs. Our M-Ray technology measures density by analyzing how millimeter waves interact with the insulation material, providing real-time density profiles across the entire board width without physical contact.

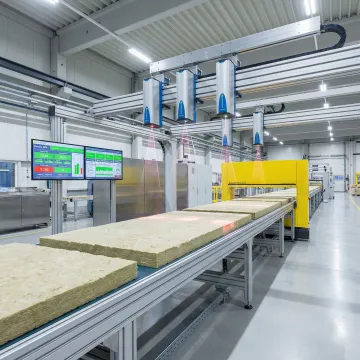

Our M-Ray technology provides equivalent or superior accuracy to nuclear gauges without any radioactive materials. This eliminates licensing requirements, regulatory compliance burdens, safety protocols for radiation exposure, and disposal concerns. Additionally, our multi-sensor approach provides comprehensive cross-directional profiling that single-point nuclear gauges cannot achieve, while enabling safe 24/7 operation by all personnel.

Our systems measure all common insulation materials including mineral wool (rock wool and glass wool), extruded and expanded polystyrene foam, polyurethane foam, phenolic foam, medium-density fiberboard (MDF), oriented strand board (OSB), gypsum boards, and multi-layer composite insulation products. The M-Ray technology works with materials ranging from a few millimeters to 30 centimeters thick.

Our systems operate at measurement rates up to 3 kHz, enabling real-time detection of density variations even on high-speed production lines running up to 500 meters per minute. The multi-sensor configuration with minimal latency allows immediate feedback to production controls for closed-loop process adjustments, preventing defective product from being produced.

Yes, our solutions are available as turnkey installations for new lines or as upgrades to existing production systems. We offer flexible integration options including the Marveloc-CURTAIN platform for inline requirements, OEM modules for machine builders, and Industry 4.0 connectivity through our IoT app for remote monitoring and data analytics integration with existing manufacturing execution systems.

Most manufacturers see ROI within 12-18 months through reduced material waste, optimized production margins, decreased scrap rates, and improved product consistency. Our systems enable thickness adjustments of up to -5% while maintaining quality standards, directly reducing raw material costs. Additionally, the elimination of nuclear source licensing and disposal costs provides ongoing operational savings.

Our systems feature user-friendly, state-of-the-art software environments designed for intuitive operation. Basic operator training typically requires 1-2 days, while advanced configuration and analytics training takes an additional 2-3 days. We provide comprehensive onsite training during installation and ongoing support through our global service network and remote connectivity capabilities.

Absolutely. Unlike optical measurement systems, our M-Ray technology maintains consistent performance regardless of material color, surface finish, or the presence of additives and fillers. This makes our systems ideal for colored foam boards, pigmented mineral wool, and insulation materials with fire retardants or other functional additives that would interfere with traditional measurement methods.
