PUR Insulation Thickness and Density Control Systems

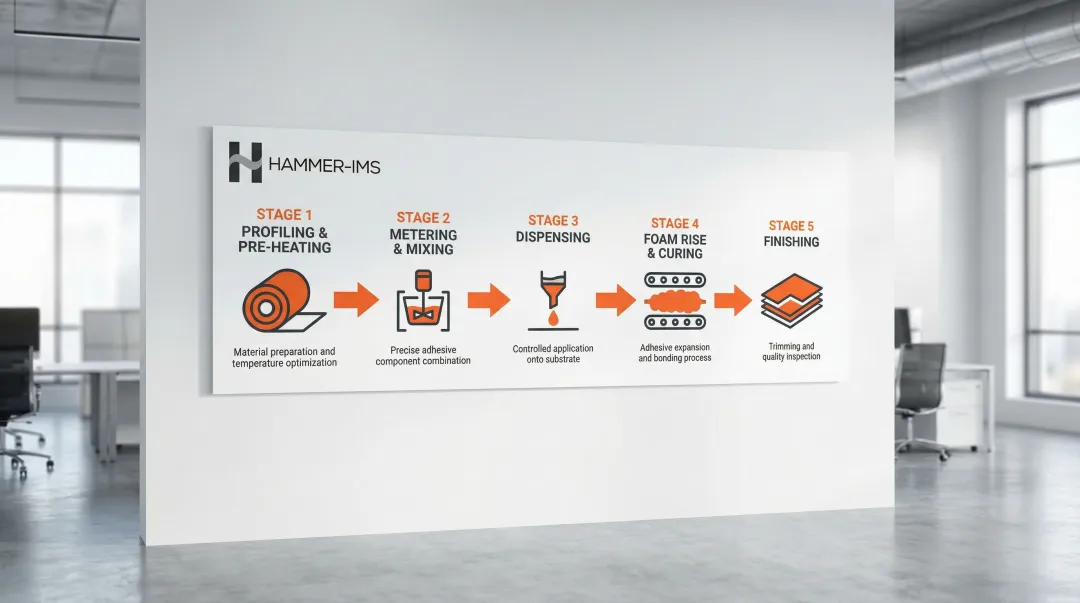

Modern lines operate at speeds up to 15 m/min, with strict temperature control to manage foaming kinetics. The foam's expansion behavior during this narrow rise-and-cure window makes real-time measurement critical. Once curing is complete, no corrections can be made.

Primary End-Use Sectors

This manufacturing complexity matters because the end-use sectors served by PUR panels leave no room for specification drift:

• Building & Construction (39.8% of global market) — Wall and roof insulation panels for commercial and residential applications
• Cold Chain & Refrigeration — Refrigerated transport, cold storage warehouses, and appliances requiring maximum thermal efficiency
• Industrial Insulation — Pipe and tank insulation where space constraints demand high R-value per unit thickness

Each of these sectors relies on certified thermal performance values — which is precisely why thickness and density control systems are built into the production line, not inspected after the fact.

Why Thickness and Density Are the Two Most Critical PUR Production Parameters

Density's Direct Impact on Thermal Performance and Cost

PUR rigid foam for building insulation typically ranges between 30 kg/m³ and 45 kg/m³, with high-load applications reaching 100 kg/m³ or higher. Within the standard construction range, density primarily affects mechanical strength and material usage rather than thermal conductivity itself.

PUR foam generally achieves lambda values between 0.020 and 0.030 W/(m·K). Density changes relatively little within the standard 30–100 kg/m³ range in terms of thermal conductivity. That said, significant density deviations can indicate poor cell structure or voids — compromising declared R-values and risking non-compliance with EN 13165.

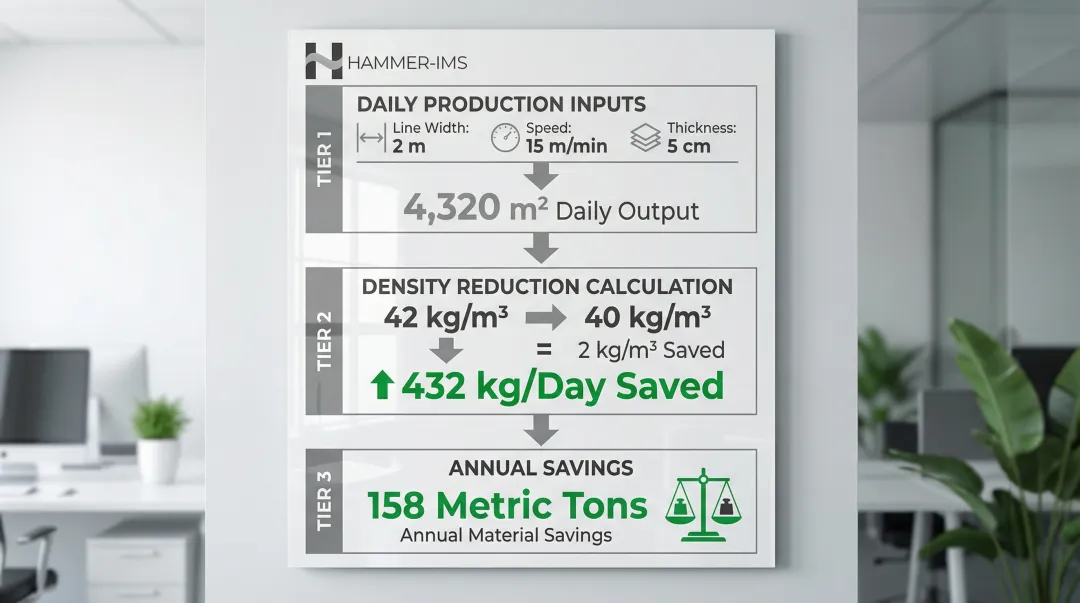

The cost implications are just as direct. Polyol and isocyanate are the highest-cost inputs in PUR manufacturing, and with MDI prices surging over 25% in 2022 and polyol prices increasing by 40% in Europe, systematic over-density inflates costs without adding product value. A line producing panels at 42 kg/m³ when the specification minimum is 40 kg/m³ wastes 2 kg/m³ across every square meter produced. Tightening density tolerances by 2–3% can save multiple metric tons of raw material annually.

Under-Density Risks: Performance Failure and Compliance Issues

Under-density foam creates multiple problems:

• Thermal performance degradation — Lower density can indicate incomplete foam rise or poor cell structure, reducing insulation effectiveness
• Compliance risk — Products may fall below certified thermal ratings required by EN 13165, creating legal liability
• Customer complaints — Buildings failing energy audits or cold storage facilities consuming excess energy trace back to substandard insulation
• Structural weakness — Reduced mechanical load capacity in sandwich panel applications

Thickness Uniformity: The Independent Critical Factor

Thickness uniformity matters independently of density. Uneven thickness across panel width causes:

• Thermal bridges — Heat bypasses insulation through thinner sections, driving up heating and cooling loads and potentially causing condensation within building envelopes
• Mechanical load distribution problems — Uneven thickness compromises structural integrity in sandwich panels
• Facing layer adhesion issues — Inconsistent foam contact with facings creates weak bonding zones
• Cutting and finishing complications — Variable thickness complicates automated cutting and creates yield losses

The Narrow Process Window Challenge

Both parameters must be controlled simultaneously and in real time. The foam rise-and-cure window is typically just a few minutes, and once foam has cured, no correction is possible. Any process drift that goes undetected during that window produces off-spec product that cannot be recovered.

This places strict demands on measurement and control infrastructure:

• Measurement systems must operate continuously at full line speed
• Control systems must respond within seconds — not minutes — to prevent accumulation of waste
• Closed-loop correction must be automated, as manual operator intervention is too slow to catch drift reliably

Common Challenges in Measuring PUR Foam During Production

Physical Measurement Barriers

PUR foam creates several measurement challenges that conventional sensors struggle to handle:

• Low density and porosity — The material is roughly 90% gas, making it difficult for many sensor technologies to detect accurately. Contact devices such as mechanical gauges and calipers are impractical on a fast-moving, soft, expanding substrate.
• Moving, expanding surface — In continuous lamination, foam is still expanding at speeds up to 15 m/min. The surface may be uneven during rise, and any contact could compress or damage the foam structure.
• Uneven cellular structure — Local cell variation means single-point measurements can miss defects or systematic differences across the web width.

Regulatory Burden of Nuclear Gauges

Historically, nuclear-based gauges using sealed radioactive sources have been used for density profiling in foam production. However, these systems create mounting regulatory challenges:

Cross-Web Thickness Variation

Foam dispensed across a wide conveyor rarely achieves uniform thickness:

• Profile variations — Foam density is often higher near facings due to friction and cooling effects, with the center potentially thicker or thinner than edges
• Dispensing issues — Uneven distribution from the mix head creates systematic thickness gradients
• Edge effects — Foam expansion is restricted at panel edges, creating different rise characteristics
• Single-point measurement blindness — Systems measuring only at one point miss these profiles entirely, leading to systematic out-of-spec product

Spatial variation is only part of the picture. Over longer production runs, gradual process drift introduces a separate category of risk.

Process Drift Over Production Shifts

Multiple factors cause gradual changes that only continuous monitoring can catch:

Environmental factors:

• Ambient temperature fluctuations affect reaction kinetics
• Humidity variations influence blowing agent behavior
• Seasonal changes require process adjustments

Equipment and material factors:

• Mix head calibration drift over time
• Raw material batch-to-batch variation
• Blowing agent concentration changes
• Catalyst activity variations

Without real-time monitoring, these gradual drifts accumulate, resulting in large quantities of off-spec product before operators notice through manual checks.

How Modern PUR Thickness and Density Control Systems Work

Non-Contact Inline Scanning Measurement Principle

Modern systems mount sensors above and/or below the foam line to continuously scan the product without physical contact. This approach overcomes the limitations of contact measurement on soft, moving foam substrates.

Key measurement technologies:

• Millimeter-wave (M-Ray) — Uses electromagnetic waves to penetrate foam and measure thickness and density-related parameters based on wave travel time through the material
• Laser displacement — Uses triangulation or time-of-flight to measure thickness profiles with high precision
• Ultrasonic — Uses sound waves to determine thickness and detect internal defects
• Capacitance — Measures dielectric constant changes to infer density when thickness is known
