Ultrasonic Wall Thickness Measurement Guide

Thickness calculation uses ultrasonic pulse-echo principles measuring time-of-flight. Our systems automatically process signals and provide real-time thickness readings with built-in calibration for accuracy across various materials and production conditions.

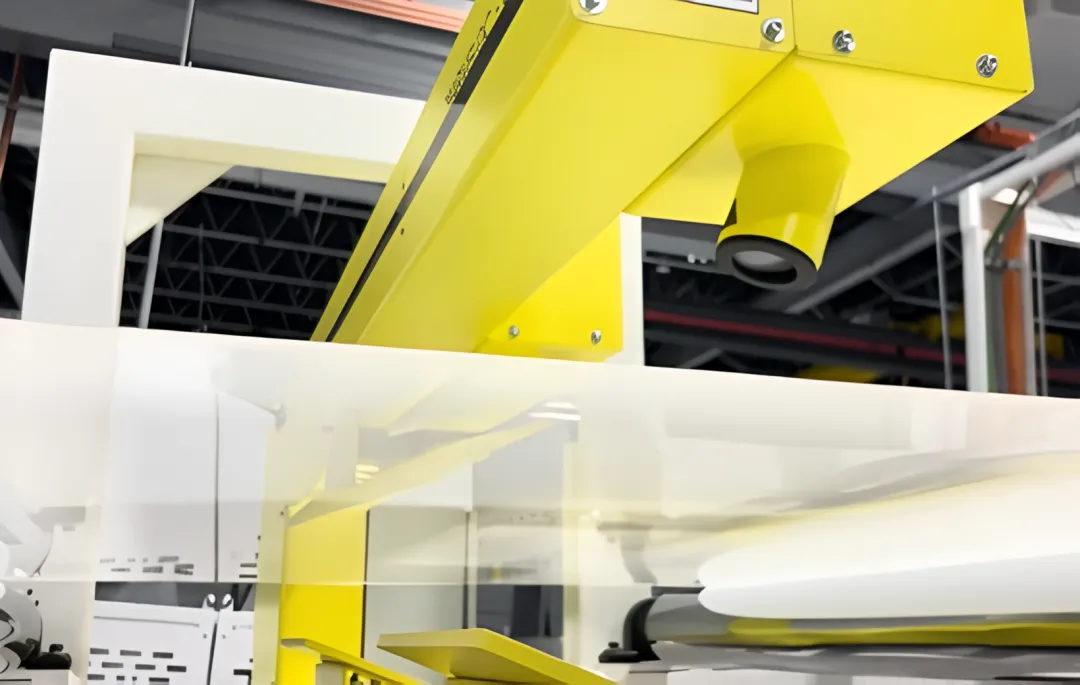

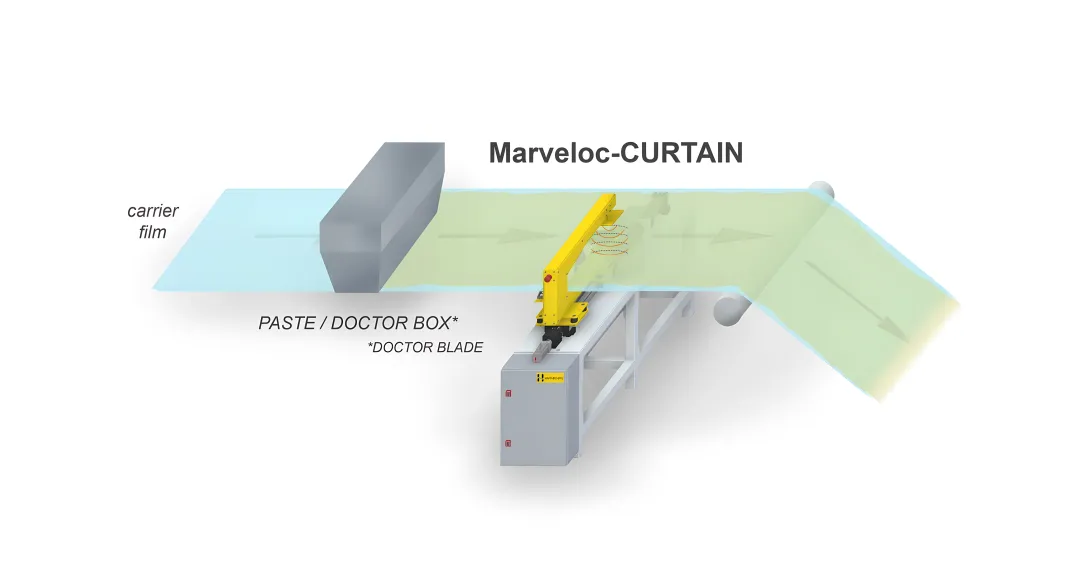

Yes, our CURTAIN systems are specifically designed for inline measurement on active production lines. The traveling O-Frame scanner and fixed C-Frame configurations measure thickness in real-time without disrupting manufacturing processes.

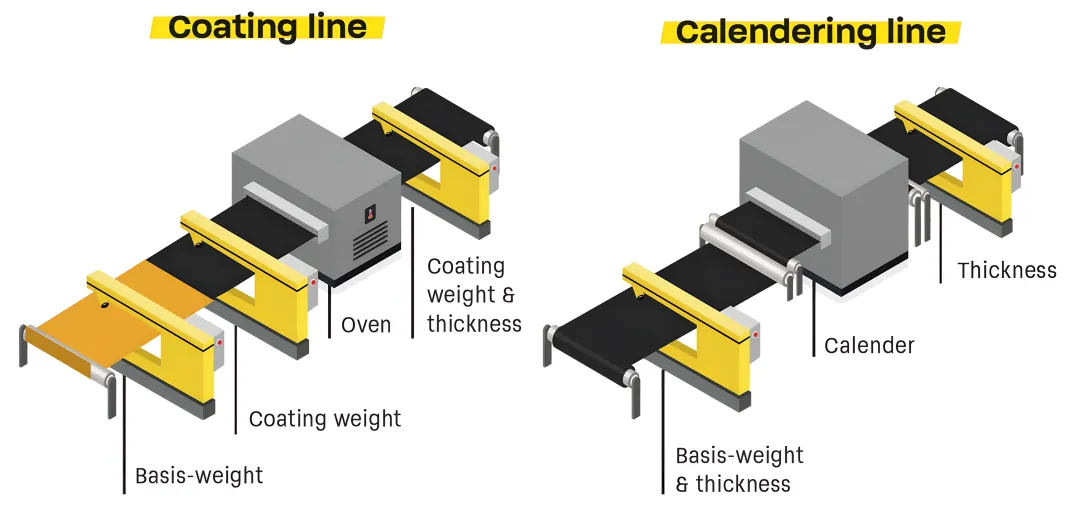

Our systems measure plastic films, battery materials, textiles, nonwovens, rubber, synthetic foam, glass-fiber composites, carbon-fiber materials, and wallpapers. Multi-head configurations adapt to different material properties and production requirements.

Built-in automatic calibration maintains long-term measurement reliability using air or reference materials. The system continuously validates accuracy, ensuring consistent precision throughout production runs without manual intervention or downtime.

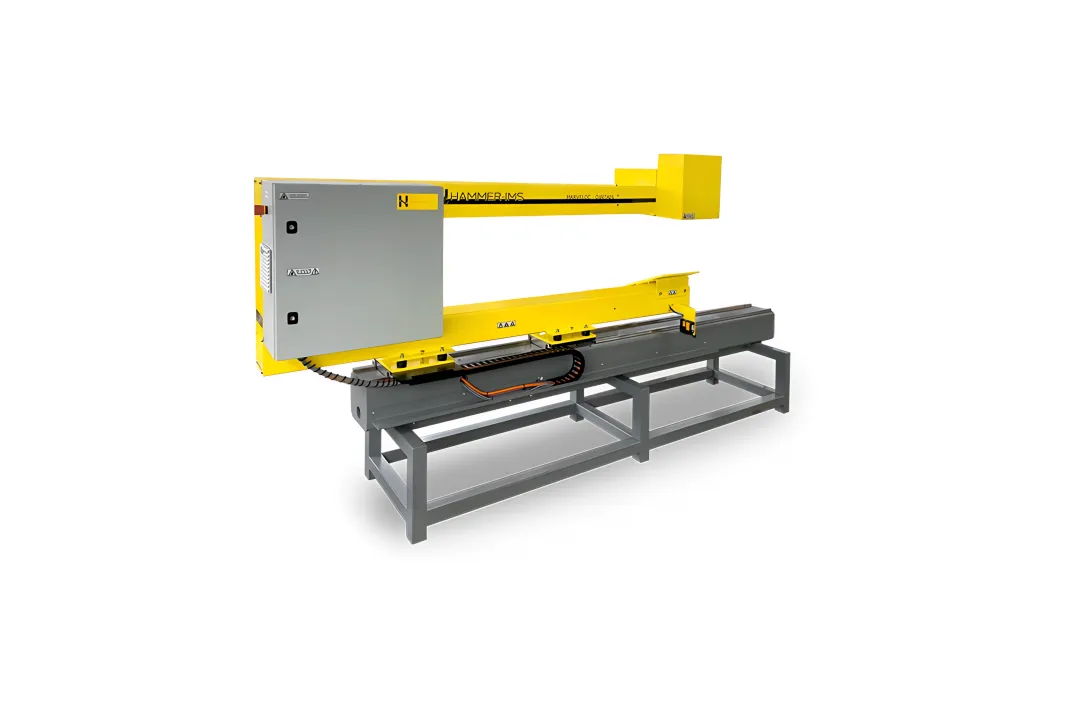

O-Frame systems suit wide production lines up to 5+ meters with complete material coverage. C-Frame designs fit confined spaces with arm lengths to 1.5 meters, offering flexible installation on either production side.

Connectivity 3.0 software provides PROFINET or OPC UA links for seamless integration. Real-time feedback enables closed-loop adjustments, automatic product acceptance/rejection, and comprehensive data logging for process optimization and quality assurance.
