Needle Punching Quality Control and Density Monitoring Solutions

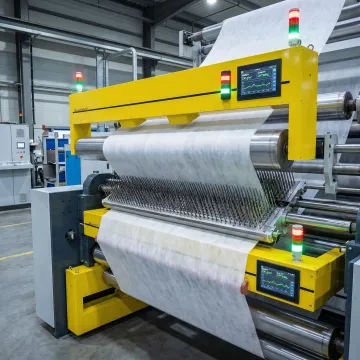

Needle punching is a nonwoven fabric manufacturing process where barbed needles mechanically entangle fibers to create a cohesive fabric structure. The process involves repeatedly punching needles through a fiber web, causing the fibers to interlock and form a stable, durable nonwoven material used in applications ranging from automotive components to geotextiles and filtration media.

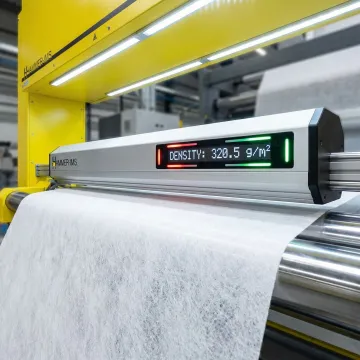

M-Ray technology uses millimeter wave electromagnetic radiation to measure density, thickness, and basis weight without physically touching the fabric. These waves penetrate the material and provide precise measurements based on signal reflection and transmission, enabling continuous monitoring at production speeds up to 500 meters per minute without disrupting the manufacturing process.

Contactless measurement eliminates physical pressure on the fabric that could compress fibers and provide inaccurate readings. It also prevents contamination, reduces maintenance requirements, enables high-speed continuous monitoring, and allows measurements in harsh production environments without sensor wear or damage to the product.

Non-nuclear M-Ray technology eliminates radiation safety concerns, licensing requirements, and special handling procedures. It enables 24/7 production operations by all personnel without radiation exposure risks, reduces regulatory compliance costs, and provides an environmentally friendly alternative while maintaining measurement accuracy comparable to or better than nuclear methods.

Yes, our multi-sensor head platforms provide comprehensive cross-machine direction coverage, detecting local density deviations that may correspond to individual needle board sections or other process variations. This enables targeted adjustments to specific zones for optimal uniformity across the entire fabric width.

Our systems operate at multi-kHz measurement rates, providing real-time feedback with minimal latency. This enables immediate detection of density variations, basis weight deviations, or other anomalies, allowing operators to make corrective adjustments before significant amounts of off-specification material are produced.

Our systems measure all types of needle punched nonwovens including automotive insulation, geotextiles, filtration media, carpet backing, industrial felts, and composite materials. The technology maintains consistent performance regardless of fiber type, color, or filling materials used in the fabric structure.

Yes, our Industry 4.0 IoT application enables remote monitoring of all measurement data through mobile devices. The platform includes comprehensive data analytics features for identifying production trends, tracking quality metrics over time, and generating reports to support continuous improvement initiatives across your needle punching operations.
